Double-Black Enlightenment

Ripping down the steepest, chunkiest, fall-line trails is a zen-like experience, simultaneously losing all sense of self and becoming one with your bike. This flow state requires the right tool for the job, a bike that knows no limits, instilling a daredevil’s confidence and monk’s focus. Chasing this feeling is what inspired us to develop the Gnarvana.

The Gnarvana pairs 160 mm of Freedom Linkage-controlled travel with 29” wheels to create a bike fast enough to outrun your professional distractions and release yourself from terrestrial bonds. Come as you are and ascend to the next level with Gnarvana.

RALLY BUILD KIT SPECS

SUSPENSION
Fork: RockShox ZEB Select+ - 170 mm Travel - 29"
Shock: RockShox Super Deluxe Select+ 230x65
COCKPIT
Stem: e*thirteen Base - Ø35 - 40 mm
Bars: e*thirteen Race Carbon - Ø35 x 800 x 20 mm
Grips: ODI Elite Pro Lock-on
Saddle: GG Custom SDG Radar
Seatpost: SDG Tellis - 150 mm (170 mm on Size 4)
BRAKES
Brakeset: SRAM Code RSC
Rotors: SRAM Centerline - F200/R180
DRIVETRAIN
Shifter: SRAM GX Eagle
Derailleur: SRAM GX Eagle
Cassette: SRAM GX Eagle
Crankset: SRAM Descendant Carbon
WHEELS - TUBELESS
Wheelset: Stan's Flow MK4 - 29"
Front Tire: Maxxis Assegai 3C/EXO+/TR 29x2.5
Rear Tire: Maxxis DHRII 3C/EXO+/TR 29x2.4

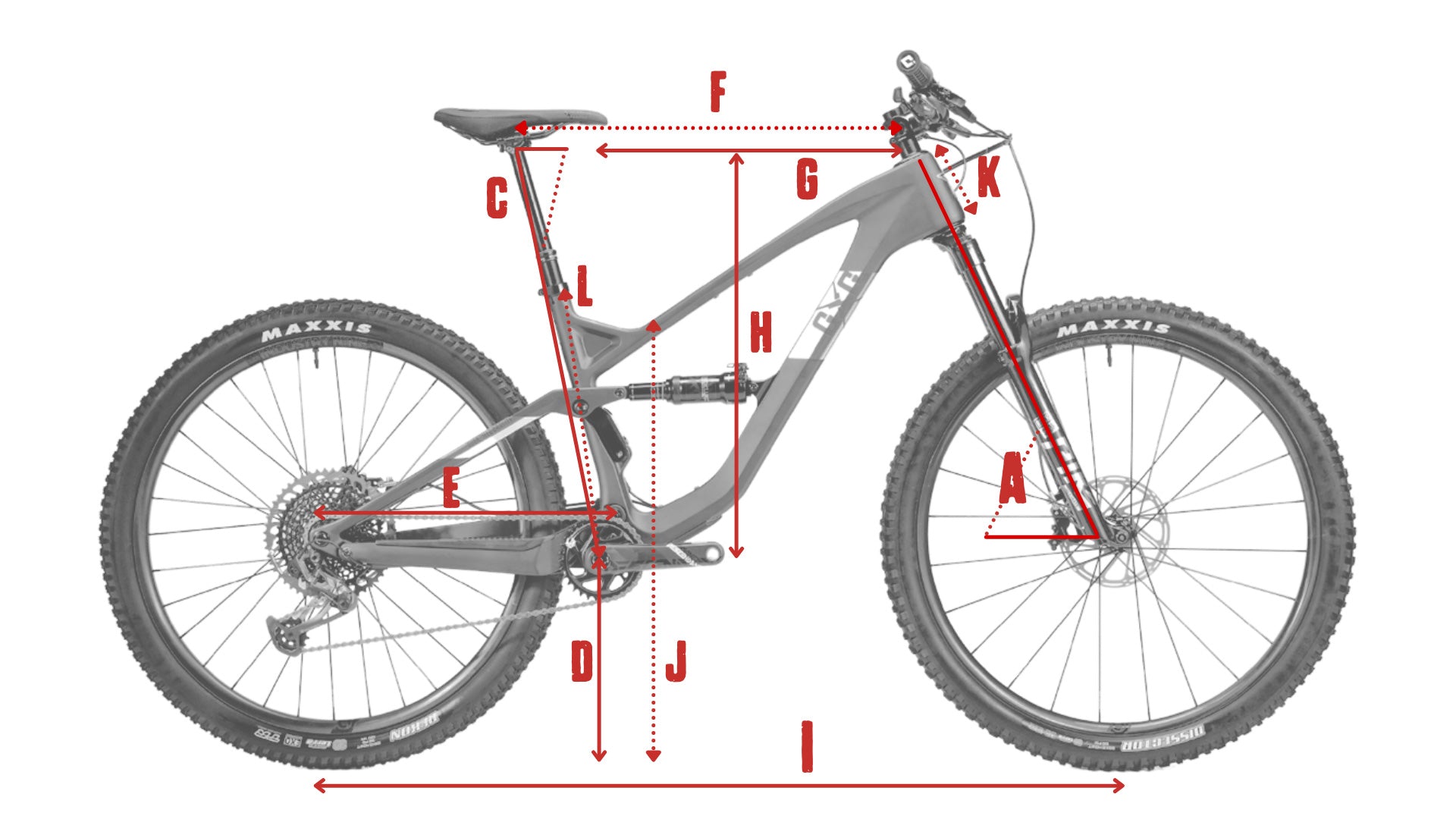

    Geometry

    Size 2

    Size 3

    Size 4

    A. Head Angle* 64.7º 64.7º 64.7º
    B. Seat Tube Angle - Actual 73.1º 73.1º 73.1º
    C. Seat Tube Angle - Effective 77.1º 77.0º 76.8º
    D. Bottom Bracket Height* 344 mm 344 mm 344 mm
    E. Chainstay Length 440 mm 440 mm 440 mm
    F. Effective Top Tube** 586 - 596 mm 615 - 625 mm 652 - 662 mm
    G. Reach** 446 - 456 mm 471 - 481 mm 500 - 510 mm
    H. Stack 610 mm 628 mm 646 mm
    I. Wheelbase** 1211 - 1221 mm 1244 - 1254 mm 1283 - 1293 mm
    J. Standover 730 mm 731 mm 737 mm
    K. Head tube Length 100 mm 120 mm 140 mm
    L. Seat tube Length 400 mm 430 mm 480 mm
    * With stock 150mm fork in Crush or Plush Mode
    ** GeoAdjust Headset offers 10 mm of adjustment between Long and Short setting

    Rider Height

    The GeoAdjust Headset offers 10mm of adjustment between the Long and Short setting.

    Null
Frame Features

Frame Features

Geometry

Geometry

Geometry

Size 2

Size 3

Size 4

A. Head Angle* 63.6º 63.6º 63.6º
B. Seat Tube Angle - Actual 72.1º 72.1º 72.1º
C. Seat Tube Angle - Effective 76.1º 76.0º 75.9º
D. Bottom Bracket Height* 347 mm 347 mm 347 mm
E. Chainstay Length 450 mm 450 mm 450 mm
F. Effective Top Tube** 590 - 600 mm 620 - 630 mm 655 - 666 mm
G. Reach** 434 - 444 mm 460 - 470 mm 488 - 498 mm
H. Stack 618 mm 636 mm 654 mm
I. Wheelbase** 1229 - 1239 mm 1263 - 1273 mm 1301 - 1311 mm
J. Standover 743 mm 744 mm 745 mm
K. Head tube Length 100 mm 120 mm 140 mm
L. Seat tube Length 400 mm 430 mm 480 mm
* With stock 170mm fork
** GeoAdjust Headset offers 10 mm of adjustment between Long and Short setting
Frame Specs

Frame Specs

  • Freedom Linkage - A versatile suspension platform for air or coil shocks, with a wide adjustment range
  • Integrated-External Cable Door - Combines the sleekness of internal routing with the no-fuss and maintenance-friendly access of external routing
  • Frame storage system - Multiple locations to mount your water bottle or tool kit bracket
  • External brake and shift cable routing - We sweat the details so you don’t have to. Super clean, rub-free, and noise-proof. GG’s cable routing is dialed in for modern riders.
  • Molded rubber protector - A quiet bike is a fast bike. GG chain slap protectors keep you running silently.
  • Evolved Kinematics - Finely tuned to achieve maximum downhill speed while protecting your ability to swiftly climb back up for more.
  • Frame material: Revved Carbon front and alloy rear triangle
  • Fork travel: 170 mm
  • Shock size: 230 x 65 mm
  • Shock hardware: 8x20 (f), 8x35(r)
  • Seatpost: 30.9 mm with stealth dropper routing
  • Seatpost clamp: 37 mm (included with frame)
  • Max dropper insertion: See Dropper Fitment Guide
  • Chainguide mount: ISCG05
  • Bottom bracket: 73 mm BSA threaded
  • Chainline: 52mm
  • Max chainring size: 34t
  • Rear wheel dish: 3mm
  • Derailleur hanger: Sram Universal Derailleur Hanger (UDH)
  • Brake mount: ISO
  • Max tire size: 29 x 2.5"
