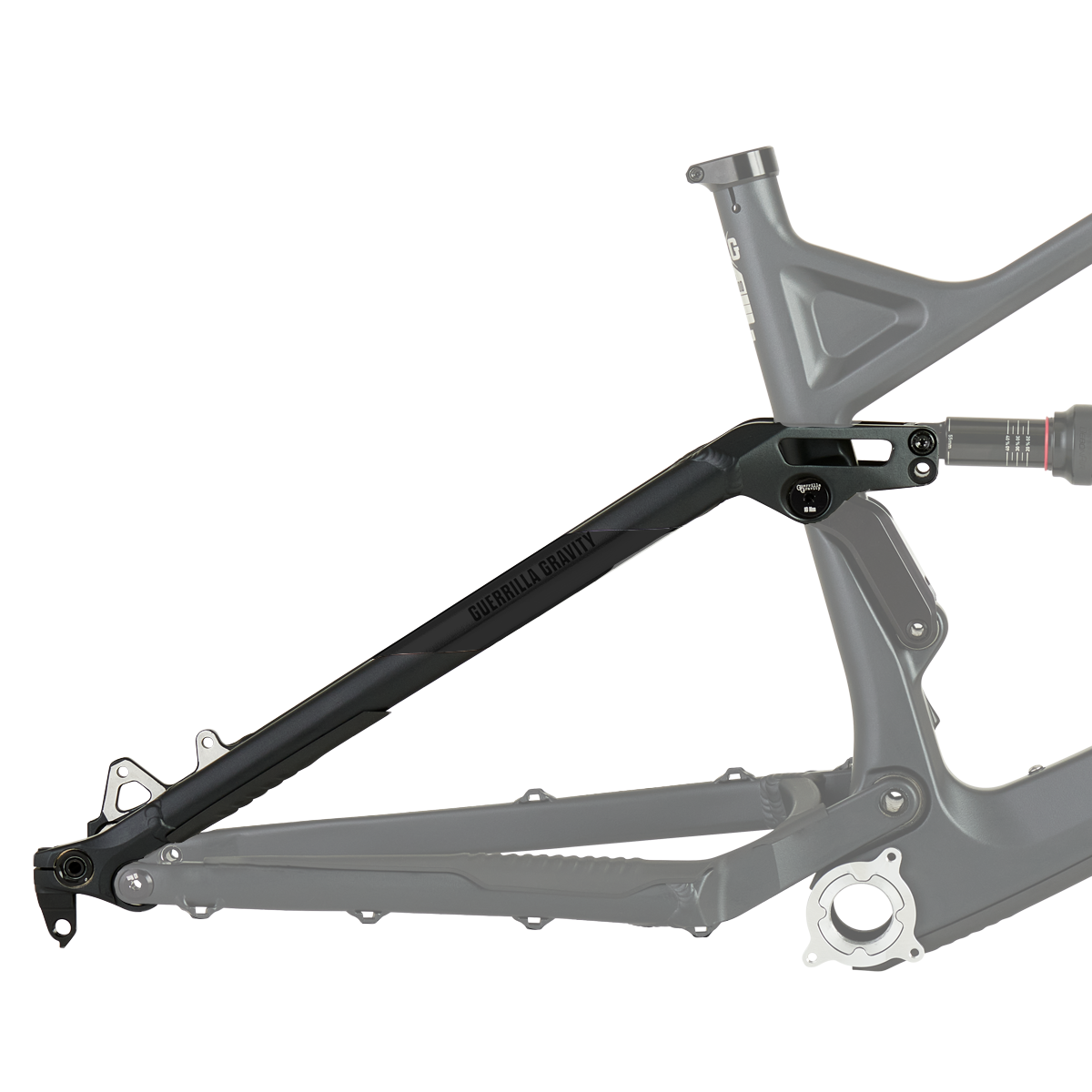

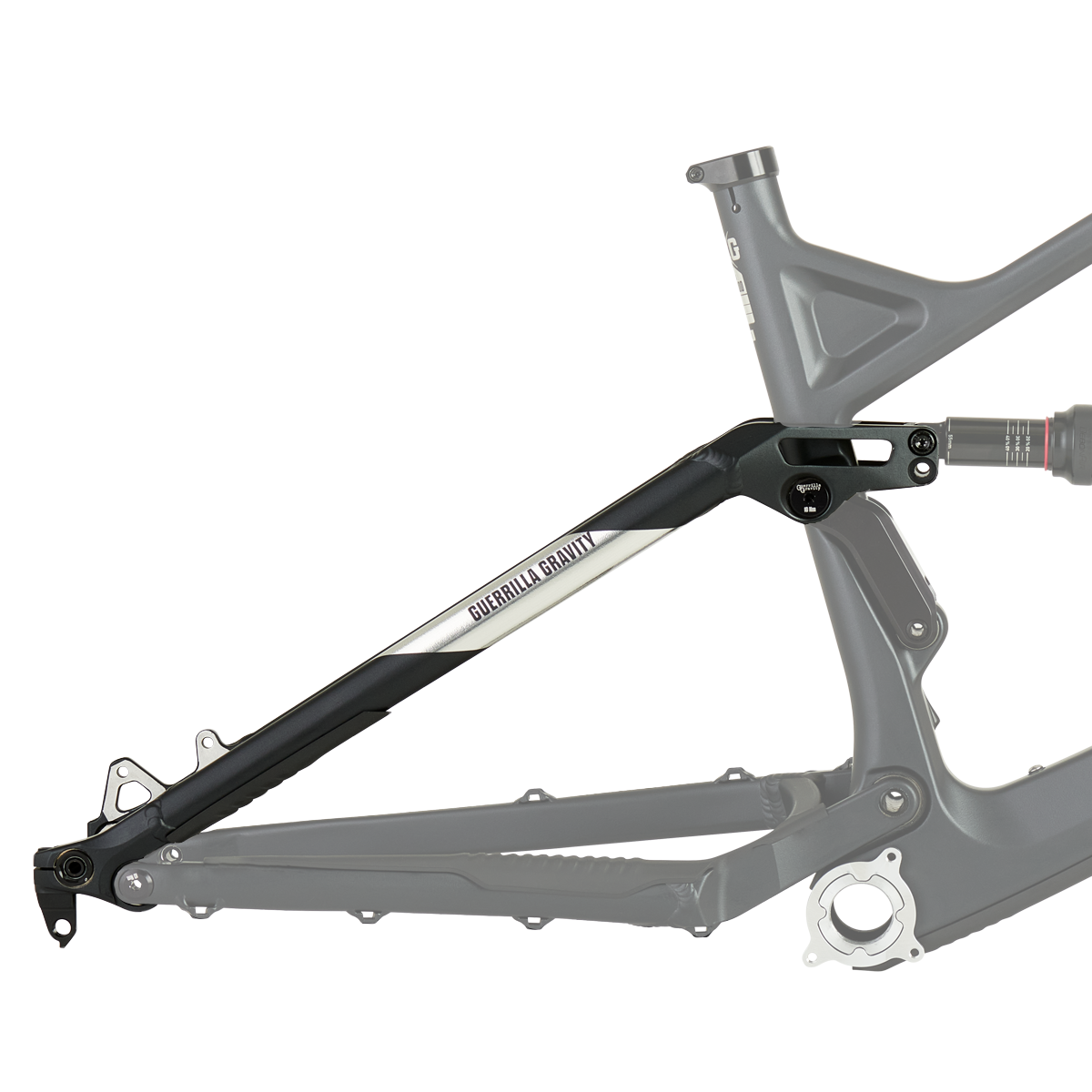

Shred Dogg Seatstay Kit
Travel: 130/140 mm | Wheelsize: 27.5"
This is the bike that turns your local trail into your very own pump track. As our most lively full suspension model, the Shred Dogg values playfulness and maneuverability. This bike is perfect for the rider that wants to hit every bonus feature along the way.
You can use this kit to convert your current bike* to the Shred Dogg. Use the Add Components button on this page to find the necessary parts needed to complete your Modular Frame swap, plus any additional components that you may want or need.
*For owners of all 2019+ GG bikes with the Modular Frame Platform. This kit is only compatible with V1 models with an alloy swingarm (chainstay).
|A. Head Angle*||65.4º||65.4º||65.4º|
|B. Seat Tube Angle - Actual||73.5º||73.5º||73.5º|
|C. Seat Tube Angle - Effective||77.6º||77.5º||77.4º|
|D. Bottom Bracket Height*||337 mm||337 mm||337 mm|
|E. Chainstay Length||423 mm||423 mm||423 mm|
|F. Effective Top Tube**||590 - 600 mm||615 - 625 mm||645 - 655 mm|
|G. Reach**||453 - 463 mm||478 - 488 mm||508 - 518 mm|
|H. Stack||604 mm||622 mm||640 mm|
|I. Wheelbase**||1189 - 1199 mm||1222 - 1232 mm||1261 - 1271 mm|
|J. Standover||722 mm||724 mm||726 mm|
|K. Head tube Length||100 mm||120 mm||140 mm|
|L. Seat tube Length||400 mm||430 mm||480 mm|
** GeoAdjust Headset offers 10 mm of adjustment between Long and Short setting
- Rear Triangle material: 6061 aluminum
- Front Triangle material: Revved Carbon
- Frame weight: 6.5 lbs. (2,950 g) frame with hardware (Size 3, no shock)
- Fork travel: 140 - 160 mm
- Shock size: 210 x 55 mm
- Shock hardware: 8x20 (f), 8x35(r)
- Seatpost: 30.9 mm with stealth dropper routing
- Seatpost clamp: 37 mm (included with frame)
- Max dropper insertion: See Dropper Fitment Guide
- Chainguide mount: ISCG05
- Bottom bracket: 73 mm BSA threaded
- Chainline: Compatible with 52 - 55 mm
- Max chainring size: 34t
- Rear spacing: 12 x 148 Boost rear hub, offset 3 mm to the drive side for optimal chainline and clearance
- Derailleur hanger: Universal Syntace X-12 Type 1
- Brake mount: ISO
- Max tire size: 27.5" x 2.8"
