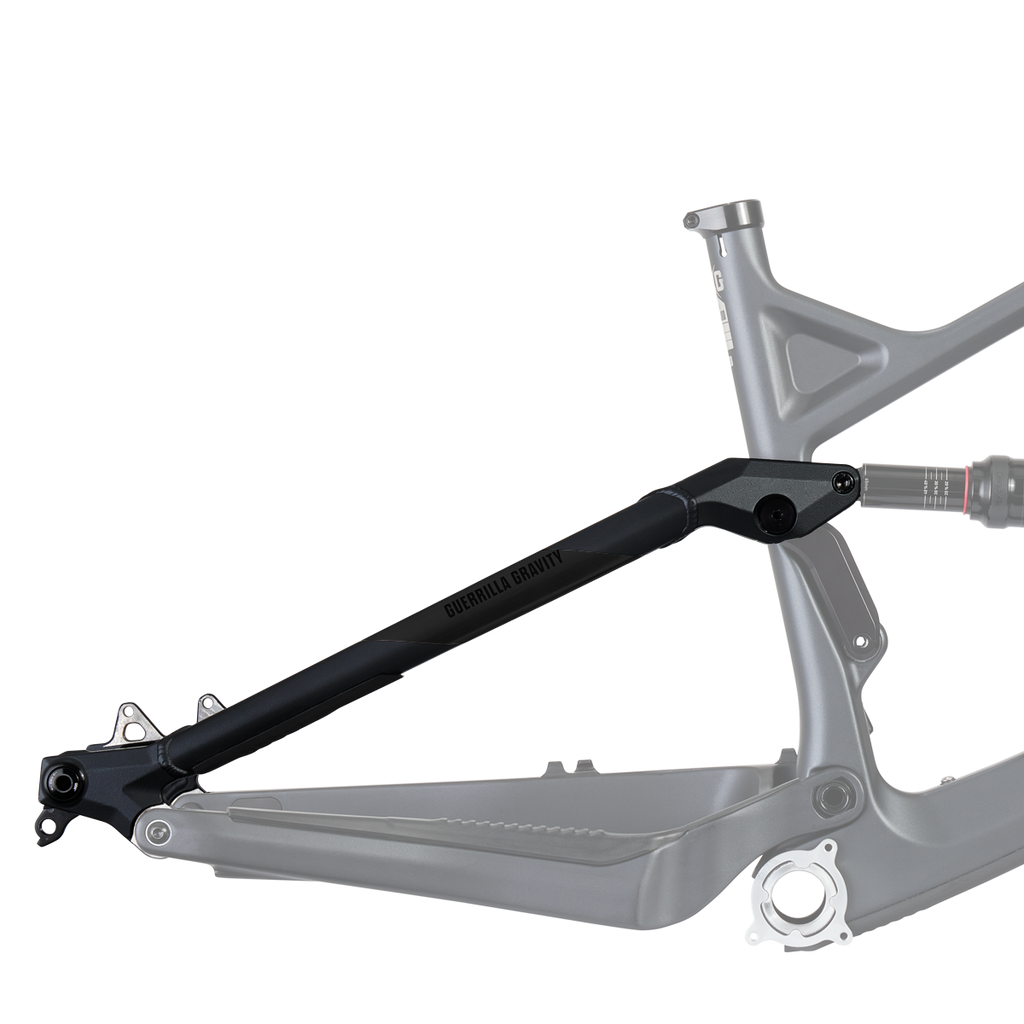

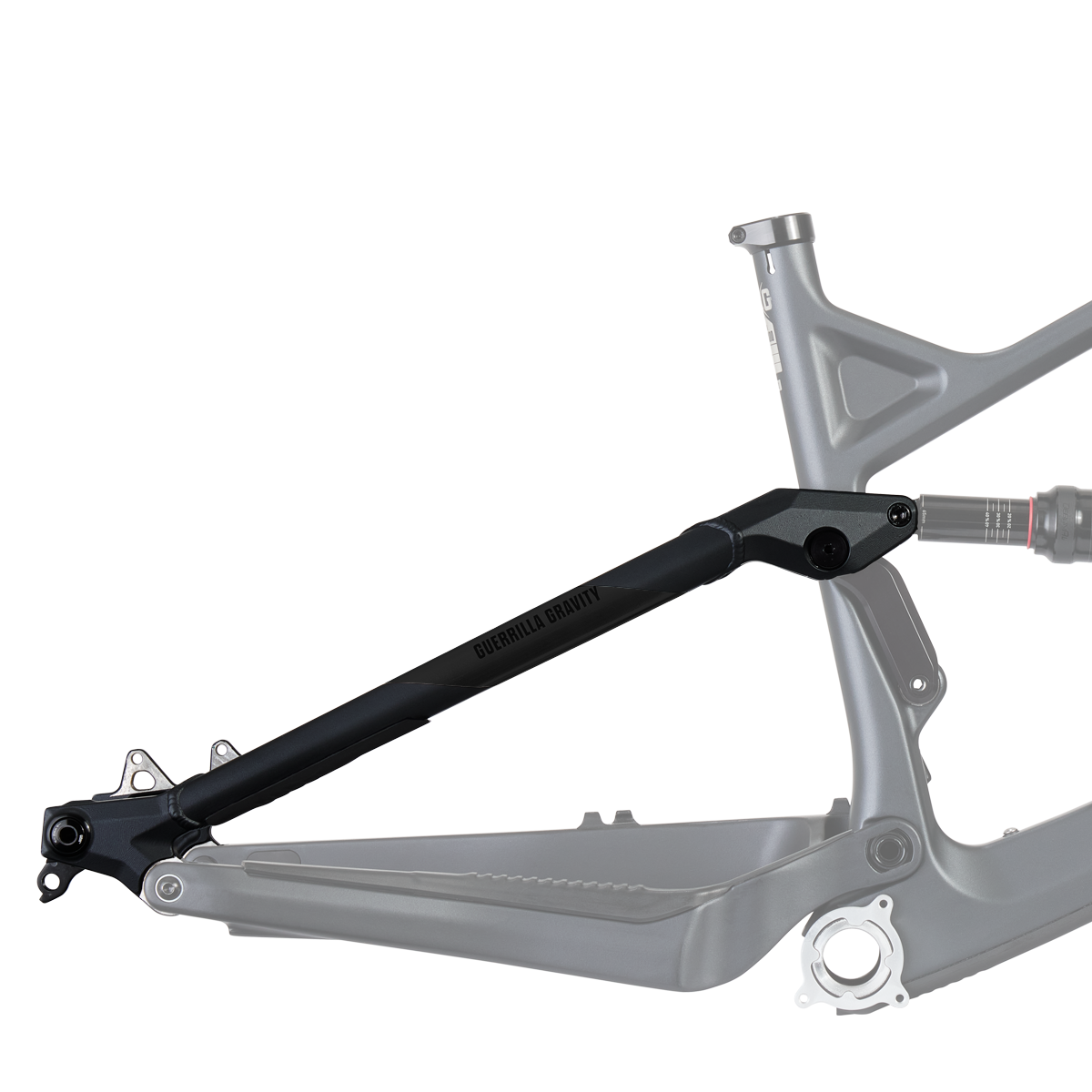

Gnarvana (V2) Seatstay Kit
Travel: 160 mm | Wheelsize: 29"
Ripping down the steepest, chunkiest, fall-line trails is a zen-like experience, simultaneously losing all sense of self and becoming one with your bike.
This flow state requires the right tool for the job, a bike that knows no limits, instilling a daredevil’s confidence and monk’s focus. Chasing this feeling is what inspired us to develop the Gnarvana.
You can use this kit to convert your current bike* to the V2 Gnarvana, which features a Revved Carbon swingarm, providing an improved ride quality due to Revved Carbon's unique vibration damping properties. If you'd like to learn more about the V2 Gnarvana you can read the rundown here and check out a review of the bike here.
Use the Add Components button on this page to find the necessary parts needed to complete your Modular Frame swap, plus any additional components that you may want or need.
*For owners of all 2021+ GG bikes with the Modular Frame Platform. This kit is only compatible with V2 models with a Revved swingarm (chainstay).
|A. Head Angle*||63.6º||63.6º||63.6º|
|B. Seat Tube Angle - Actual||72.1º||72.1º||72.1º|
|C. Seat Tube Angle - Effective||76.1º||76.0º||75.9º|
|D. Bottom Bracket Height*||347 mm||347 mm||347 mm|
|E. Chainstay Length||450 mm||450 mm||450 mm|
|F. Effective Top Tube**||590 - 600 mm||620 - 630 mm||655 - 666 mm|
|G. Reach**||434 - 444 mm||460 - 470 mm||488 - 498 mm|
|H. Stack||618 mm||636 mm||654 mm|
|I. Wheelbase**||1229 - 1239 mm||1263 - 1273 mm||1301 - 1311 mm|
|J. Standover||743 mm||744 mm||745 mm|
|K. Head tube Length||100 mm||120 mm||140 mm|
|L. Seat tube Length||400 mm||430 mm||480 mm|
** GeoAdjust Headset offers 10 mm of adjustment between Long and Short setting
- Front and Rear Triangle material: Revved Carbon
- Fork travel: 160 - 170 mm
- Frame travel: 160 mm
- Shock size: 230 x 65 mm
- Shock hardware: 8x20 (f), 8x35(r)
- Seatpost: 30.9 mm with stealth dropper routing
- Seatpost clamp: 37 mm (included with frame)
- Max dropper insertion: See Dropper Fitment Guide
- Chainguide mount: ISCG05
- Bottom bracket: 73 mm BSA threaded
- Chainline: 52mm
- Max chainring size: 34t
- Rear wheel dish: 0mm
- Derailleur hanger: Sram Universal Derailleur Hanger (UDH)
- Brake mount: ISO
- Max tire size: 29 x 2.5"
